WJP HMG 645 S 132A - replaced by MAG 84.6 series

This engine is not available anymore. Replaced by MAG 84.6 series produced by MAMOTEC GmbH.

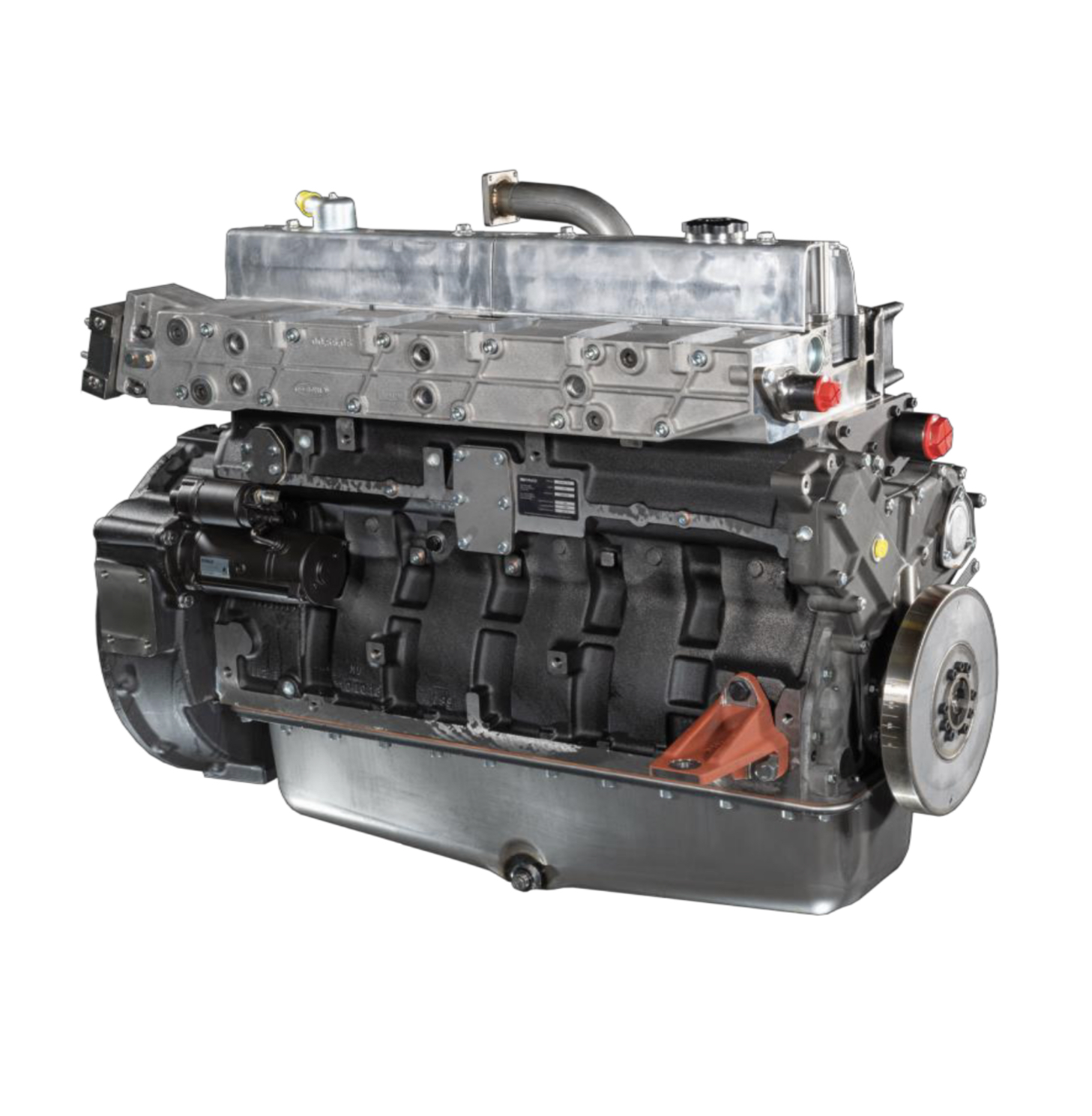

Basic / naked gas engine build on robust AGCO agricultural engine block finihsed by WJ POWER's own component production and assembly. Naturally aspirated, 145mm stroke, compression ratio 13:1, clutch SAE2.

Optional extra:
Large oil sum 46,5l (instead of standard 25l) for extended 1500 operating hours oil change interval. Price 1 600 EUR / item.

Optional configuration on request (at no extra charge):
HMG 645 S 112A: compression ratio 11:1, clutch SAE2
HMG 645 S 113A: compression ratio 11:1, clutch SAE3
HMG 645 S 133A: compression ratio 13:1, clutch SAE3

Engine equipment such as air-fuel ratio control, speed control or ignition are not supplied nor recommended by engine manufacturer.

Scope of delivery of basic / naked engine:
Water cooled basic engine with electric starter, wet cilinder liners, water cooled exhaust manifold with exhaust outlet SAE-inside without turbocharging.
